Perforated Metal Mesh with Staggered Round Holes
Product descriptions
Round perforated is a sheet or coil of material made from metal or plastic that contains holes punched by a die. The shape of the hole is determined by the shape of the die. For perforated with a round hole pattern, the die is circular. The die's diameter can vary from approximately twice the thickness of the material being punched to over two inches.
Perforated metal mesh panels, also known as perforated metal mesh sheets, are used in countless industrial and architectural applications. With options in shape, size and material, perforated or woven metal mesh panels can be crafted for virtually any purpose.

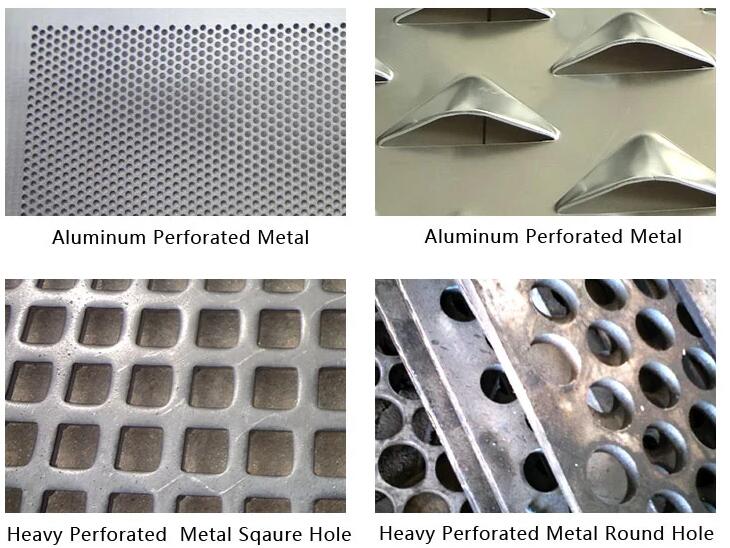

Perforated Metal Mesh is created by punchinga series of holes in a solid material. Holes can be round, square, rectangular,slotted, or decorative. It is available in wide range of hole sizes andpatterns. The perforated pattern can be straight or staggered. It has anunpolished surface. To improve the service life or beauty, the surface can begalvanized or powder coated.
Material:
We specializes in manufacturing round hole perforated sheets in various high quality materials including steel ( mild steel or carbon steel, no painting, galvanized or PVC coated), stainless steel, aluminum, copper and brass or other materials as your request.
Round hole perforated sheets are the most common and most requested. There are several types of hole diameters: very small, medium and large size. Hole pattern is of primary importance: the most popular arrangement is the 60 degree angle pattern, which combines a high rigidity and a decent proportion between open and full areas. The 90° pattern is equally popular, above all for aesthetic needs whereas the 45° pattern is now almost disused.
Round hole perforated sheet offers the widest options of hole sizes, gauges, materials and sheet size for all types of applications. For example:
* Cladding and ceiling panels
* Sunshade and sunscreen
* Filter to sieve seed, stone and other bulk materials
* Decorative banister
* Protective fences of overpasses and machine equipments.
Specification:
| Code | Hole size (diameter) | Hole center | Hole type | Open area | Code | Hole size (diameter) | Hole center | Hole type | Open area |
| RHPS-1 | 0.02" | 0.043" | 45° staggered | 20% | RHPS-21 | 5/32" | 3/16" | 60° staggered | 63% |
| RHPS-2 | 0.023" | 0.042" | Straight | 22% | RHPS-22 | 5/32" | 1/4" | 60° staggered | 34% |
| RHPS-3 | 0.027" | 0.05" | Straight | 23% | RHPS-23 | 3/16" | 7/32" | 60° staggered | 67% |
| RHPS-4 | 1/32" | 1/6" | 45° staggered | 23% | RHPS-24 | 3/16" | 1/4" | 60° staggered | 50% |
| RHPS-5 | 0.033" | 0.055" | Straight | 28% | RHPS-25 | 3/16" | 5/16" | 60° staggered | 32% |
| RHPS-6 | 0.045" | 0.066" | Straight | 36% | RHPS-26 | 3/16" | 3/8" | 60° staggered | 23% |
| RHPS-7 | 0.045" | 5/64" | 45° staggered | 32% | RHPS-27 | 3/16" | 1/2" | Straight | 10% |
| RHPS-8 | 0.05" | 0.083" | Straight | 29% | RHPS-28 | 1/4" | 5/16" | 60° staggered | 58% |
| RHPS-9 | 3/64" | 3/32" | 60° staggered | 23% | RHPS-29 | 1/4" | 3/8" | 60° staggered | 42% |
| RHPS-10 | 1/16" | 3/32" | 60° staggered | 41% | RHPS-30 | 1/4" | 3/8" | Straight | 34% |
| RHPS-11 | 1/16" | 7/64" | 60° staggered | 27% | RHPS-31 | 1/4" | 1/2" | 60° staggered | 23% |
| RHPS-12 | 1/16" | 1/8" | 60° staggered | 23% | RHPS-32 | 1/4" | 1/2" | Straight | 20% |
| RHPS-13 | 5/64" | 1/8" | 60° staggered | 36% | RHPS-33 | 5/16" | 7/16" | 60° staggered | 46% |
| RHPS-14 | 3/32" | 5/32" | 60° staggered | 33% | RHPS-34 | 3/8" | 1/2" | 60° staggered | 52% |
| RHPS-15 | 3/32" | 3/16" | 60° staggered | 23% | RHPS-35 | 3/8" | 9/16" | 60° staggered | 40% |
| RHPS-16 | 0.117" | 5/32" | 60° staggered | 51% | RHPS-36 | 3/4" | 1" | 60° staggered | 51% |
| RHPS-17 | 1/8" | 3/16" | 60° staggered | 40% | RHPS-37 | 1/2" | 11/16" | 60° staggered | 49% |
| RHPS-18 | 1/8" | 7/32" | 60° staggered | 30% | RHPS-38 | 5/8" | 7/8" | 60° staggered | 46% |
| RHPS-19 | 1/8" | 1/4" | 60° staggered | 23% | RHPS-39 | 1" | 1-3/8" | 60° staggered | 48% |
| RHPS-20 | 9/64" | 3/16" | 60° staggered | 51% | | | | |
