Custom Large Plain Twill Weave 304 316 Stainless Steel Netting Woven Wire Mesh Screen

  • 1
  • 2
  • 3

Brand Name : QIJIE

Model Number : QJ-004

Certification : ISO9001

Place of Origin : China

MOQ : 50 rolls

Price : discuss

Payment Terms : TT/LC

Supply Ability : 1000 rolls per week

Delivery Time : 15 - 20 days

Packaging Details : as requirement

Technique : Woven

Material : Stainless Steel Wire,316,304

Weave style : Plain/Twill Weave

Product name : Square 4X4 Woven Flour 100 Micron Stainless Steel Wire Mesh

Wire diameter : Requirement

Width : Usually 1M

Email : devin@industrialmetalmesh.com

whatsapp : +8615369013183

Contact Now

Custom Large Plain Twill Weave 304 316 Stainless Steel Netting Woven Wire Mesh Screen​
Stainless Steel Wire Mesh
Stainless steel wire mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening. Due to its own characteristics of stainless steel, the stainless steel mesh processed has high wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti-static, anti-acid and alkali resistance Corrosion.
Stainless steel wire mesh is a kind of mesh made of stainless steel.

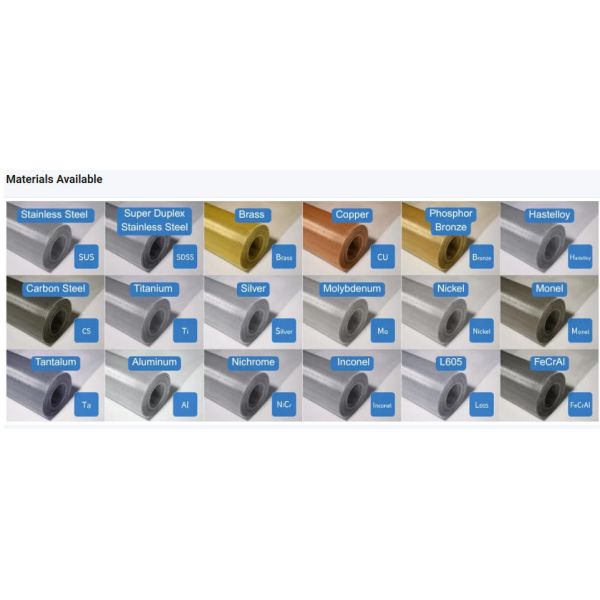

Material: Stainless steel wire 304,304L,316,316L and so on
Weaving: Plain weave, twill weave, dutch weave
Mesh: 2 mesh-500 mesh
Usage:
1. For acid, alkali conditions for screening and filtering, the petroleum industry as mud mesh, chemical fiber industry, as the sieve plating.
2. For mining, petroleum, chemical, food, medicine, machinery manufacturing, and other industries.
3. For acid, alkali conditions sieving and filtering, the mud for the oil industry, chemical fiber industry as screen, electroplating industry for pickling net, the factory can according to user needs to design the production of various types of products.
Specification
Mesh
Wire Diameter(mm)
Opening(mm)
3
1.60
6.87
4
1.20
5.15
5
0.95
4.13
6
0.80
3.43
8
0.70
2.34
10
0.60
1.94
12
0.55
1.56
14
0.41
1.40
16
0.35
1.24
18
0.30
1.11
20
0.27
1.00
22
0.25
0.90
24
0.23
0.83
26
0.20
0.78
28
0.18
0.73
30
0.15
0.70
35
0.14
0.59
40
0.14
0.50
50
0.12
0.39
60
0.12
0.30
Custom Large Plain Twill Weave 304 316 Stainless Steel Netting Woven Wire Mesh Screen
Plain weave and twill weave stainless steel wire mesh reference specification:
Mesh
Wire Diameter (mm)
Opening (mm)
Mesh
Wire Diameter (mm)
Opening (mm)
2×2
1.60
11.10
40×40
0.25
0.38
3×3
1.37
7.09
50×50
0.20
0.31
4×4
1.60
4.75
60×60
0.18
0.23
4×4
1.19
5.16
60×60
0.18
0.25
5×5
1.00
4.04
70×70
0.12
0.24
6×6
0.89
3.35
80×80
0.14
0.15
8×8
0.71
2.46
90×90
0.12
0.16
10×10
0.64
1.91
100×100
0.10
0.15
12×12
0.58
1.52
120×120
0.09
0.12
12×12
0.50
1.60
150×150
0.063
0.11
14×14
0.23
1.22
180×180
0.053
0.09
14×14
0.50
1.30
200×200
0.053
0.07
16×16
0.45
1.13
250×250
0.04
0.063
18×18
0.43
0.98
300×300
0.04
0.044
20×20
0.40
0.87
325×325
0.035
0.043
24×24
0.35
0.70
350×350
0.03
0.042
30×30
0.30
0.54
400×400
0.028
0.036
30×30
0.23
0.62
450×450
0.028
0.028
35×35
0.28
0.45
500×500
0.025
0.026
Duth weaving stainless steel wire mesh reference specification:
mesh wire dia (MM) Material (AISI)
12 X 64 0.58/0.40 304 316
24 X 110 0.36/0.25 30.316
14 X88 0.50/0.33 30.316
30 X150 0.18/0.14 30.316
40 X200 0.14/0.11 30.316
50 X250 0.10/0.071 30.316
80 X700 0.06/0.05 30.316
165 X800 0.071/0.040 30.316
165 X1400 0.05/0.032 30.316
200 X1800 0.05/0.03 30.316
325 X2300 0.030/0.025 316L
400 X2800 0.030/0.02 316L

Custom Large Plain Twill Weave 304 316 Stainless Steel Netting Woven Wire Mesh Screen

Custom Large Plain Twill Weave 304 316 Stainless Steel Netting Woven Wire Mesh Screen
